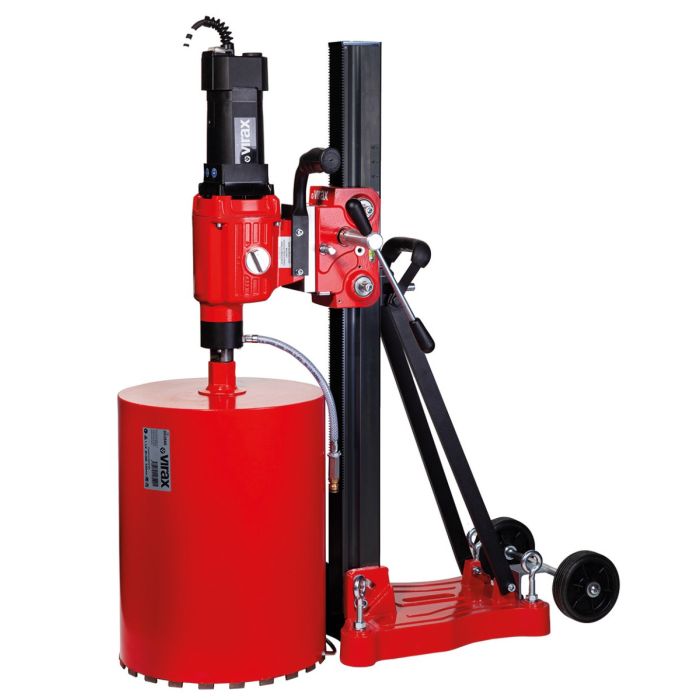

0501 : V 350 Core Drill and Support Stand
For wet core drilling on support stand.
Powerful 3-speed motor for intensive use.
Quadruple protection for the motor for long lift and user safety.
1 single support stand for the 2 core drills V 250 and V 350.
Core drill:
3000 W motor with triple protection:
- Electronic (in the event of overload on the motor) with alert light in the trigger,
- Thermal (in the event of overheating),
- Mechanical (axis decoupling if the core bit locks).
Fourth protection for the motor and gears thanks to an oil pumping system that enables permanent lubrication.
3 speeds: 230/500/1030 rpm (rotation under load).
Additional handle for easy transport and assembly.
UNC connection 1.1/".
PRCD protection switch.
Support stand:
Aluminium column support stand and reinforcement bars to minimise vibration.
Drilling over the full height of the stand (scale in mm); Can be tilted from 0° to 45°.
Adjustable brake; Stop button; easy positioning of the V150+.
Practical: centring indicator and built-in level.
Maximum stability: base with 4 adjustment nuts, can be used fixed by anchor spindle or with vacuum pump
Right/left movement lever, movable without tools.
Wheels and handle to facilitate transport.
Dimensions (L x w x H) : 538 x 330 x 1110 mm.
| Sku | Description | Power W | kg |
|---|---|---|---|
| 050130 |
V 350 motor and support stand |
3000 |
33,700 |
| 050121 |
V 250 / V 350 support stand |
- |
22,000 |
| 050136 |
V 350 motor |
3000 |
11,700 |
| Capacity | Wet drilling on support stand for reinforced concrete, abrasive materials, bricks, breeze block, etc. up to Ø 350 mm. |
|---|---|
| Tips | The use of a water and dust vacuum (ref. 050057) is strongly recommended for dry core drilling. |
| Supplied with | Core drill: |
